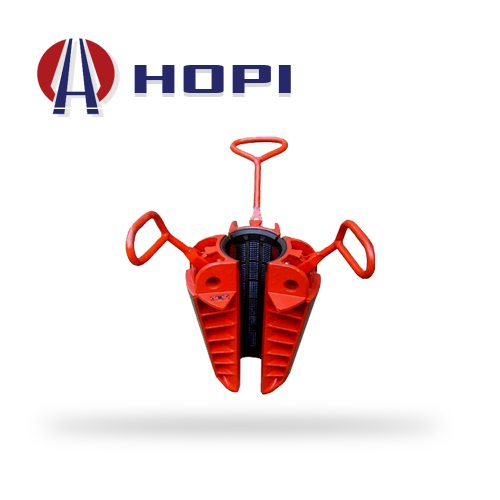

Casing Slips are made up of body segments of the same sizes linked up by Hinge Pins. Adding or reducing body segments and changing button inserts according to the specification can suit different sizes of casing pipes.
> Casing size from 6 5/8”-30”
> The CMS-XL have 4” API taper to fit spides and casing bushing of the same taper
> Baash-Ross style UC3 & UC4
|
Casing O.D. |
in |
6-5/8 |
7 |
7-5/8 |
8-5/8 |
9-5/8 |
10-3/4 |
11-3/4 |
|
lb |
196 |
184 |
166 |
181 |
192 |
209 |
260 |
|
|
Total number of segments |
12 |
12 |
12 |
13 |
14 |
15 |
17 |
|
|
Casing O.D. |
in |
13 3/8 |
16 |
18 5/8 |
20 |
24 |
26 |
30 |
|
lb |
247 |
308 |
367 |
383 |
443 |
486 |
546 |
|
|
Total number of segments |
18 |
21 |
25 |
26 |
30 |
33 |
37 |
|
