Drill Pipe Power Tong

Description

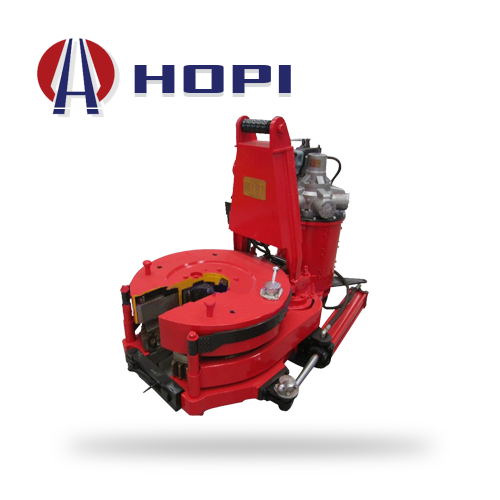

ZQ Series Drill Pipe Power Tong is an ideal well head tool for oil drilling, widely applied in making-up and breaking-out drill pipe and repairing well offshore and on land. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility.
The tong is a combination of spinning tong and torque tong. It substitutes cathead manual tong and spinning rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.

Parameter

Model		ZQ203-125I	ZQ203-100	ZQ203-100II	ZQ203-100III	ZQ162-50	ZQ127-25
Size range	in	31/2 coupling-8 body				2 3/8 coupling- 5 body	2 3/8 coupling- 3 ½ body
Max. torque	ft.lb	92200	73750	73750	73750	36880	18440
The speed of tong head (High)	rpm	40	40	40	40	60	65
The speed of tong head (Low)	rpm	2.7	2.7	2.7	2.7	4.1	10.5
Hydraulic system pressure rating	MPa	20	16.6	16.6	16.6	16	12
Hydraulic system pressure rating	psi	2900	2400	2400	2400	2320	1740
Hydraulic system flow rating	L/min	114	114	114	114	120	180
Hydraulic system flow rating	gpm	30	30	30	30	32	48
Stroke of shifting cylinder	in	59	59	59		39.4	39.4
Moving distance of tong	in				0-59
Lifting distance of tong	in			0-19	0-31.5
Overall Size	in	684169	673955	673955	696581	623147	443132
Weight	lb	5730	5290	5510	7165	3310	1360
